SKU : NW8000-4

Availability : In stock

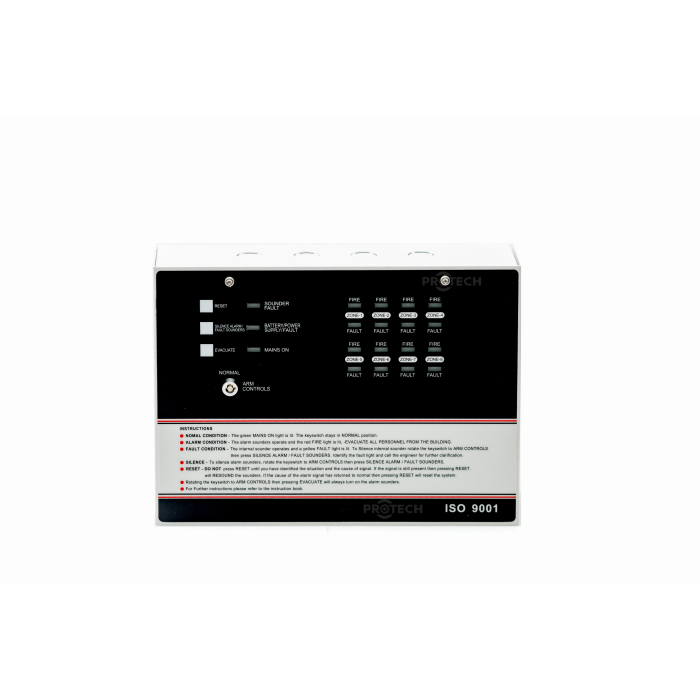

Conventional Fire Alarm Control

  • ₾450

Conventional Fire Alarm Control

  • Brands : Ningbo Deling Security
  • Material : Metal
  • Voltage : AC 220V(110~242V)
  • Dimensions : 200mm x 91mm x 300mm
  • Weight : 2.3 kg
Share :

The fire alarm control panel is an important part of the fire alarm system. It is mainly used to receive, display and transmit fire alarm signals, and has the function of issuing control signals.

The main functions of the fire alarm control panel are system power supplying, fire alarm signal receiving, and equipment linkage.

1.System Power Supplying

The fire alarm control panel can provide a stable power supply for external devices such as smoke detectors. Meanwhile, it can also monitor the working status of external

devices and the system itself.

2.Equipment Linkage

The fire alarm control panel can activate the fire alarm signal through the fire alarm sending device or activate the automatic fire extinguishing equipment and linkage control

equipment through the automatic fire extinguishing control device.

Zone Numbers: 4 zones
Voltage AC input: 110V-240V
DC Output: 29V
Current Max siren output current: 2x600mA@24VDC
Material: Iron
Color: Color can be customized
Dimension: 300 x 200 x 91mm

  • Brands : Ningbo Deling Security
  • Material : Metal
  • Voltage : AC 220V(110~242V)
  • Dimensions : 200mm x 91mm x 300mm
  • Weight : 2.3 kg
